| REMARKS
|
1.

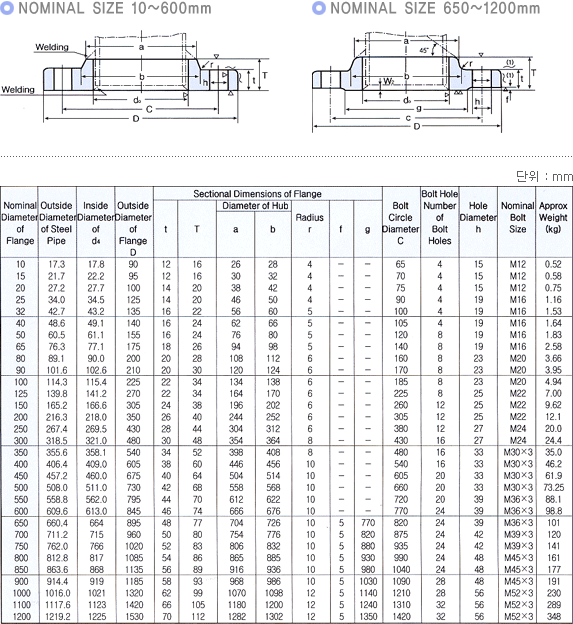

Flange of parenthesized nominal diameter had be used |
| |
2.
For dimensional tolerance, refer to JIS B 2203. |
| |
3.
In principle material shall be SS400 specified in JIS G3101.
SF400(orSF45) specified |
| |
|
in JIS G3201.
or S20C(orS25C) specified in JIS G451., and shall be fit for
welding. |
|
|
| |
| |
| |
|
